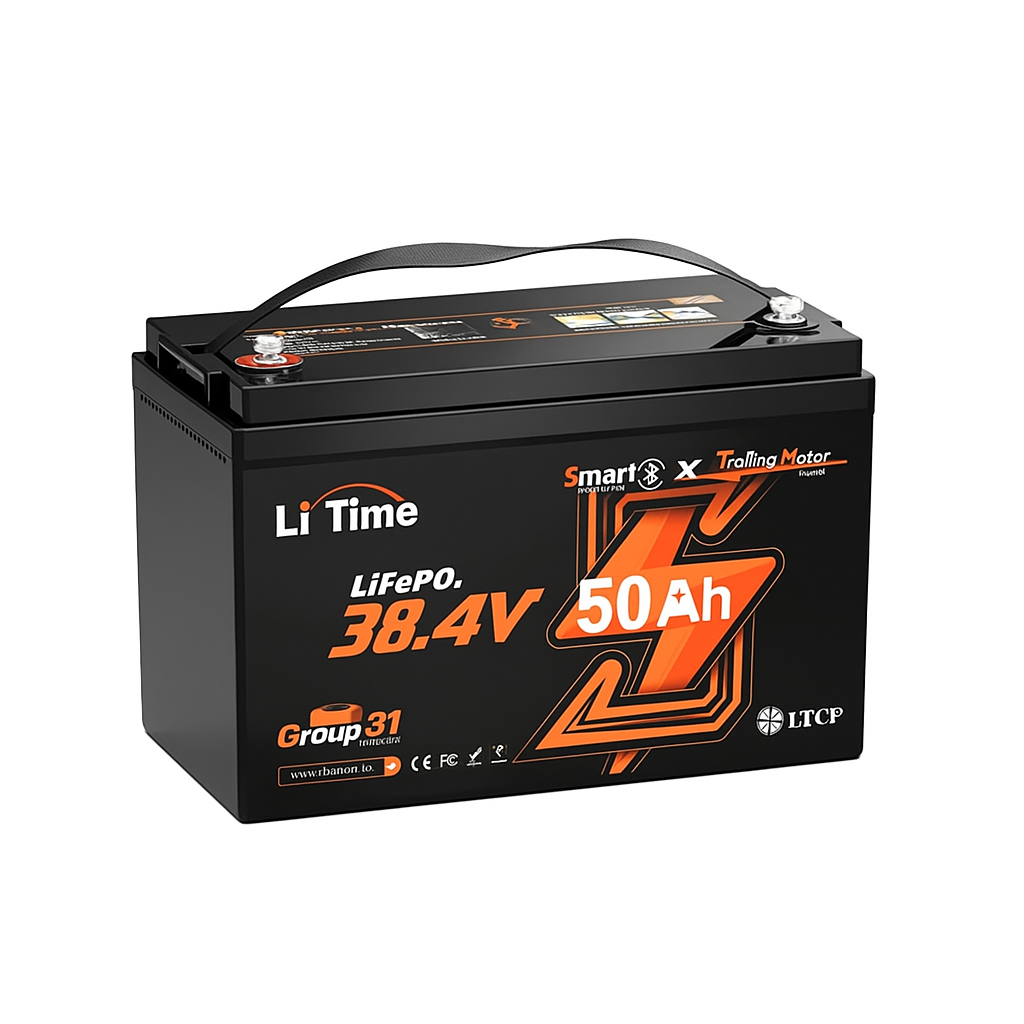

LiTime 36V 50Ah Marine Trolling Motor Lithium Bluetooth Battery
LiTime 36V 50Ah Marine Trolling Motor Lithium Bluetooth Battery
Born for 100-120 lb trolling motors, Upgraded with Smart Bluetooth 5.0.
Intelligent Bluetooth 5.0: Monitor a single battery or system's status, control discharge, or turn off battery via LiTime APP.
60A Max. Discharging Current (30 mins): Ensures stable operation of trolling motor.
Low-temp Cut-off Protection: Extends battery life even in the cold.
20+ Upgraded Protection: Includes pre-charging, over-current protection with auto-recovery (30s), moisture-proof, salt-spray resistance, etc.
IP65 Waterproof & Dustproof: No fear of wet/ marine environment.
EV-graded LiFePO4 Cells: 4000-15000 deep cycles, 10 years lifespan, eco-friendly.
Compact & Lightweight: With a 10.85% increase in energy density, 57.93 Wh/lb unparalleled energy density surpasses 52.26Wh/lb of a typical 12V 100Ah TM battery.
Max. 4P1S connection: Expand to a 38.4V 200Ah system.
Drop-in Replacement of Lead-acid Battery: With 65% lighter, 2.1X energy (VS 3pcs 12V 50Ah lead-acid batteries), better driving experience and further sailing.
Multi-application: Designed for 100-120 lb trolling motor, also for marine, home backup energy, off-grid, etc.
3 Charging Ways: LiFePO4 battery, solar panel, or generator.
Size: L13W6.77H8.5 inch. View Spces.
Note: First use or after manual shutdown: Connect the charger to activate the battery. Use LiTime 43.8V 10A charger.
Technical Specifications
Technical Specifications
BATTERY
Cell Type:LiFePO4
Warranty:5 Years
Cycle Life:4000 Cycles at 100% DOD, 6000 Cycles at 80% DOD, 15,000 Cycles at 60%
DODNominal Voltage:38.4VRated
Capacity:50AhEnergy:1920Max.
Expansion (Parallel & Series):4P1SInternal
Resistance:≤40mΩ
Certifications:UL-1973,FCC,CE,RoHS,UN38.3
Bluetooth:Yes
Self-Heating:No
BMS
BMS:50AMax.
Continuous Output Power:1920WMax.
Continuous Charge Current:50AMax.
Continuous Discharge Current:50AMax.
Discharge Current 1 Second:250A
CHARGE
Charge Method:CC/CVCharge
Voltage:43.2±0.6V
Recommend Charge Current:10A
TEMPERATURE
Charge Temperature:0°C to 50°C / 32°F to 122°F
Discharge Temperature:-20°C to 60°C / -4°F to 140°F
Storage Temperature:-10°C to 50°C / 14°F to 122°F
Low-Temperature Protection:Yes
Automatic Discharge Off:<-4°F/-20°C
Automatic Charge Off:<32°F/0°C
Automatic Charging Recovery:≥41°F/5°C
OTHERS
Terminals:M8 Bolts
Weight Approx.:33.14 lbs
Size:L13*W6.77*H8.5 in (Group 31 Size)
Housing Material:ABSProtection Class:IP65
Warranty
Warranty
5 Years Warranty
LiTime stands behind every product with reliable warranty coverage to ensure long-lasting performance and peace of mind.
Batteries
New Products:
12V (≤20Ah): 3 years · 12V (>20Ah): 5 years
24V (≥25Ah) / 36V (≥50Ah) / 48V (all) / 51.2V (≥30Ah): 5 years
Controllers, Chargers & Inverters
New: 2 years
