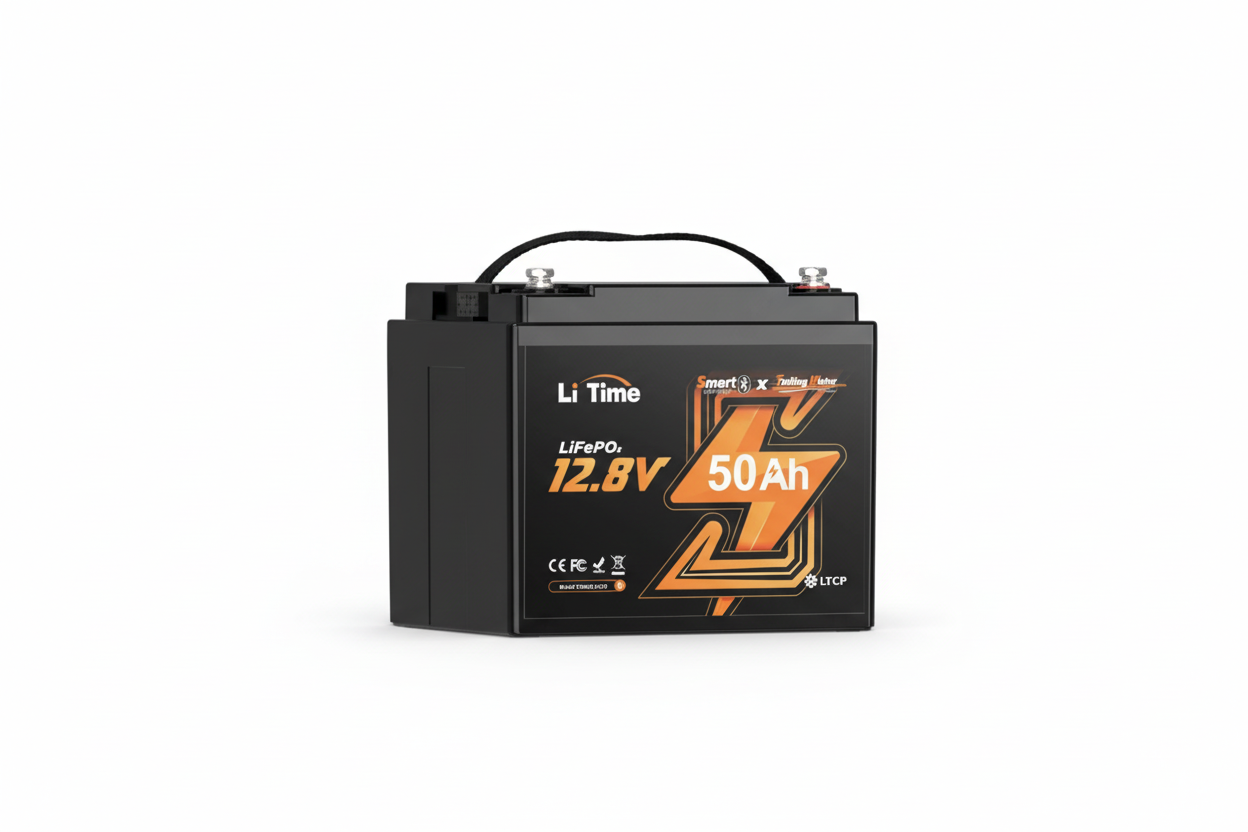

LiTime 12V 50Ah Lithium Bluetooth Battery for Trolling Motor
LiTime 12V 50Ah Lithium Bluetooth Battery for Trolling Motor
Fishing-Ready Bluetooth Power – For 20–70 lb Trolling Motors and Ultimate Control
Smart Bluetooth 5.0: Monitor your battery status and manage settings easily via the LiTime APP.
Low-Temperature Protection: Ideal for ice fishing and cold-weather use.
Self-Developed BMS: 50A BMS with 20+ upgraded protections for safe, reliable performance.
IP65 Waterproof & Dustproof: Durable for marine and outdoor environments.
EV-Grade Cells: 4,000+ cycles at 100% DOD with a lifespan of up to 10 years.
High Power Output: 640Wh energy with 640W maximum continuous output power.
Lightweight & Efficient: 2× the energy at 1C and 68% lighter than a 12V 50Ah lead-acid battery, perfect for boat fishing.
Continuous Discharge: 60A for 30 minutes to maximize trolling motor thrust.
Flexible Expansion: Supports up to 4P4S, creating battery banks up to 51.2V 200Ah.
Marine Electronics Compatible: Ideal for trolling motors, fish finders, ham radios, and other marine devices.
Multiple Charging Options: Supports 4 charging methods with 10× faster charging rates.
Compact Size: L7.68 × W6.54 × H6.77 in.
Certifications: UL-1973 tested, FCC, CE, RoHS, UN38.3 certified.
Important Notes:
Do not use as a starter battery. Use the recommended LiTime 14.6V 10A charger. Do not position the battery with the bolts side downward; all other orientations are allowed.
Technical Specifications
Technical Specifications
Battery Specifications
Cell Type: LiFePO₄
Warranty: 5 Years
Cycle Life:
4,000 cycles at 100% DOD
6,000 cycles at 80% DOD
15,000 cycles at 60% DOD
Nominal Voltage: 12.8V
Rated Capacity: 50Ah
Energy: 640Wh
Max Expansion (Parallel & Series): 4P4S
Internal Resistance: ≤40mΩ
Certifications: UL 1973, FCC, CE, RoHS, UN38.3
Bluetooth: Yes
Self-Heating: No
BMS (Battery Management System)
BMS Rating: 50A
Max Continuous Output Power: 640W
Max Continuous Charge Current: 50A
Max Continuous Discharge Current: 50A
Max Discharge Current (1 Second): 250A
Charging Specifications
Charge Method: CC / CV
Charge Voltage: 14.4V ± 0.2V
Recommended Charge Current: 10A
Temperature Performance
Charge Temperature: 32°F to 122°F (0°C to 50°C)
Discharge Temperature: -4°F to 140°F (-20°C to 60°C)
Storage Temperature: 14°F to 122°F (-10°C to 50°C)
Low-Temperature Protection: Yes
Automatic Discharge Off: Below -4°F (-20°C)
Automatic Charge Off: Below 32°F (0°C)
Automatic Charging Recovery: ≥41°F (5°C)
Physical Specifications
Terminal Type: M8 Bolts
Weight: Approx. 11.27 lbs
Dimensions (L × W × H): 7.68 × 6.54 × 6.77 in
Housing Material: ABS
Protection Rating: IP65
Warranty
Warranty
Warranty: 5 Years
