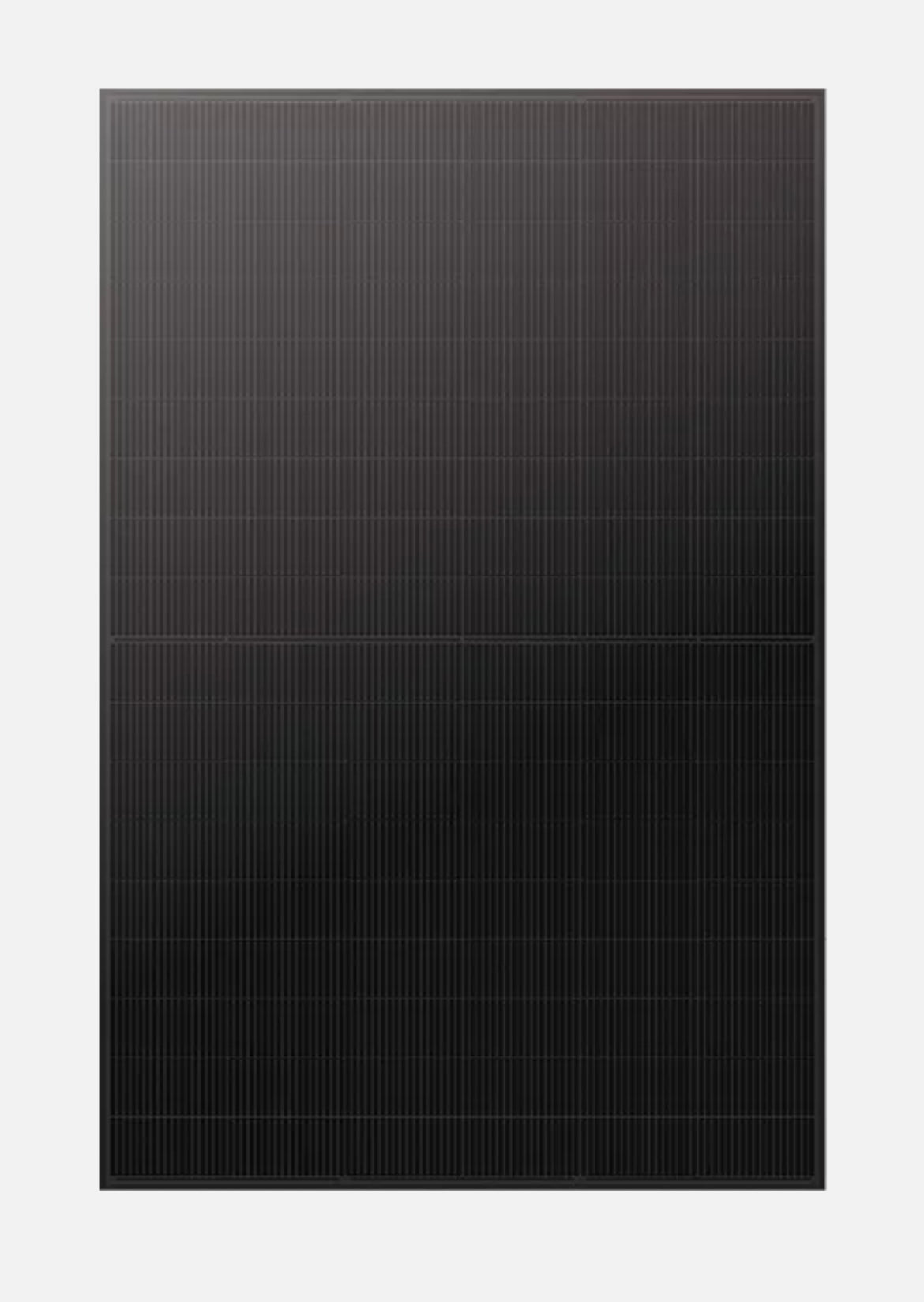

Messi Solar 440W N-Type Bifacial Solar Panel | MS-54N-BH-440M | Local Pickup La Porte, Texas
Messi Solar 440W N-Type Bifacial Solar Panel | MS-54N-BH-440M | Local Pickup La Porte, Texas
Sales and Shipping Information
Contact: CMG Solar Solutions for current pricing availability
Quantity: Singles
Local Pickup (Pallets):
La Porte, TX
N-type Bifacial Full-black 440W Solar Module
High Module Efficiency
The N-type 440W Bifacial Full-black Module boasts an impressive efficiency rate of up to 23.53%. This high efficiency ensures that the panel converts more sunlight into usable electricity, maximizing energy production even in limited space. Its advanced monocrystalline technology reduces energy losses, enabling better overall system performance compared to standard modules.
Superior Load Capacity
Designed to withstand harsh environmental conditions, this 440w solar panel features superior load capacity. It can endure heavy snow loads and high wind pressures, making it suitable for diverse installation environments, including areas prone to extreme weather. The robust frame and durable construction ensure long-term reliability and reduce maintenance costs.
Excellent Low-Light Performance
Thanks to 440w solar panel's advanced cell structure, the panel delivers excellent low-light performance. It can generate significant energy even on cloudy or overcast days, or during early mornings and late evenings when sunlight is less intense. This ensures a consistent power output, providing greater energy yield over time.
Low BOS and LCOE
With its high output and advanced efficiency, the N-type Full-black 440w Solar Module reduces Balance of System (BOS) costs and Levelized Cost of Energy (LCOE). Fewer panels are required to meet energy needs, lowering installation and operational costs. The long lifespan and superior performance also reduce the overall cost of energy production, making it an economical choice for both residential and commercial solar systems.
Higher Bifaciality
The bifacial design of this 440w solar module allows it to capture sunlight from both sides, increasing energy generation by up to 30%. With a higher bifaciality rate, the panel is ideal for installations with reflective surfaces, such as rooftops or ground-mounted systems. This feature maximizes energy output, especially in locations with higher levels of ground reflection, ultimately leading to higher energy yields.
Warranty:
- Up to 15-year Product Warranty
- 30-year Linear Power Warranty
Technical Specifications
Technical Specifications
CLICK HERE TO DOWNLOAD SPEC SHEET
CLICK HERE FOR MANUFACTURER PRODUCT PAGE
Model: MS-54N-BH-440M Full-Black Bifacial
Type: N-Type Monocrystalline, bifacial, full-black design
Cell Configuration: 108 cells (6 × 18 layout, bifacial)
Frame and Finish: Full-black aluminum frame with black finish
Junction Box and Connectors: IP68-rated, MC4-compatible, with three bypass diodes
Electrical Specifications (STC: 1000 W/m², AM 1.5, 77 °F)
Maximum Power (Pmax): 440 W
Voltage at Maximum Power (Vmpp): 32.17 V
Current at Maximum Power (Impp): 13.68 A
Open-Circuit Voltage (Voc): 38.01 V
Short-Circuit Current (Isc): 14.56 A
Module Efficiency: 22.53 %
Bifacial Gain: + 5 – 25 %, depending on ground reflectivity and installation height
Electrical Specifications (NMOT / Operational)
Maximum Power at NMOT: 331 W
Voltage at Maximum Power (Vmpp): 29.99 V
Current at Maximum Power (Impp): 11.04 A
Open-Circuit Voltage (Voc): 36.11 V
Short-Circuit Current (Isc): 11.76 A
Temperature Coefficient of Pmax: – 0.30 % / °C (≈ – 0.17 % / °F)
Temperature Coefficient of Voc: – 0.27 % / °C (≈ – 0.15 % / °F)
Temperature Coefficient of Isc: + 0.04 % / °C (≈ + 0.02 % / °F)
Mechanical & Thermal Specifications
Operating Temperature Range: – 40 °F to + 185 °F
Maximum System Voltage: 1500 V DC (typical for utility-scale systems)
Module Dimensions (L × W × D): 69.4 × 44.6 × 1.18 in
Weight: 53 lb
Glass Thickness (each side): 0.063 – 0.079 in (dual-glass type)
Mechanical Load Ratings: 113 lb/ft² snow (5400 Pa equivalent) and 50 lb/ft² wind (2400 Pa equivalent)
Warranty
Warranty
The power degradation in the first year is no higher than 1%, the linear power degradation is no higher than 0.4% and the power warranty is as long as 30 years.
- Up to 15-year Product Warranty
- 30-year Linear Power Warranty
