Nuuko 440W N-Type Bifacial Solar Panels | NKM440N-108BDM10 | Local Pickup La Porte, Texas

Name: Nuuko 440W N-Type Bifacial Solar Panels | NKM440N-108BDM10 | Local Pickup La Porte, Texas
Brand: CMG Solar Solutions
SKU: NKM440N-108BDM10
Price: 135.00 USD
Availability: InStock

$135.00 USD

Sale Sold out

Sales and Shipping Information

Contact: CMG Solar Solutions for current pricing availability

Quantity: Singles

Local Pickup (Pallets):

La Porte, TX

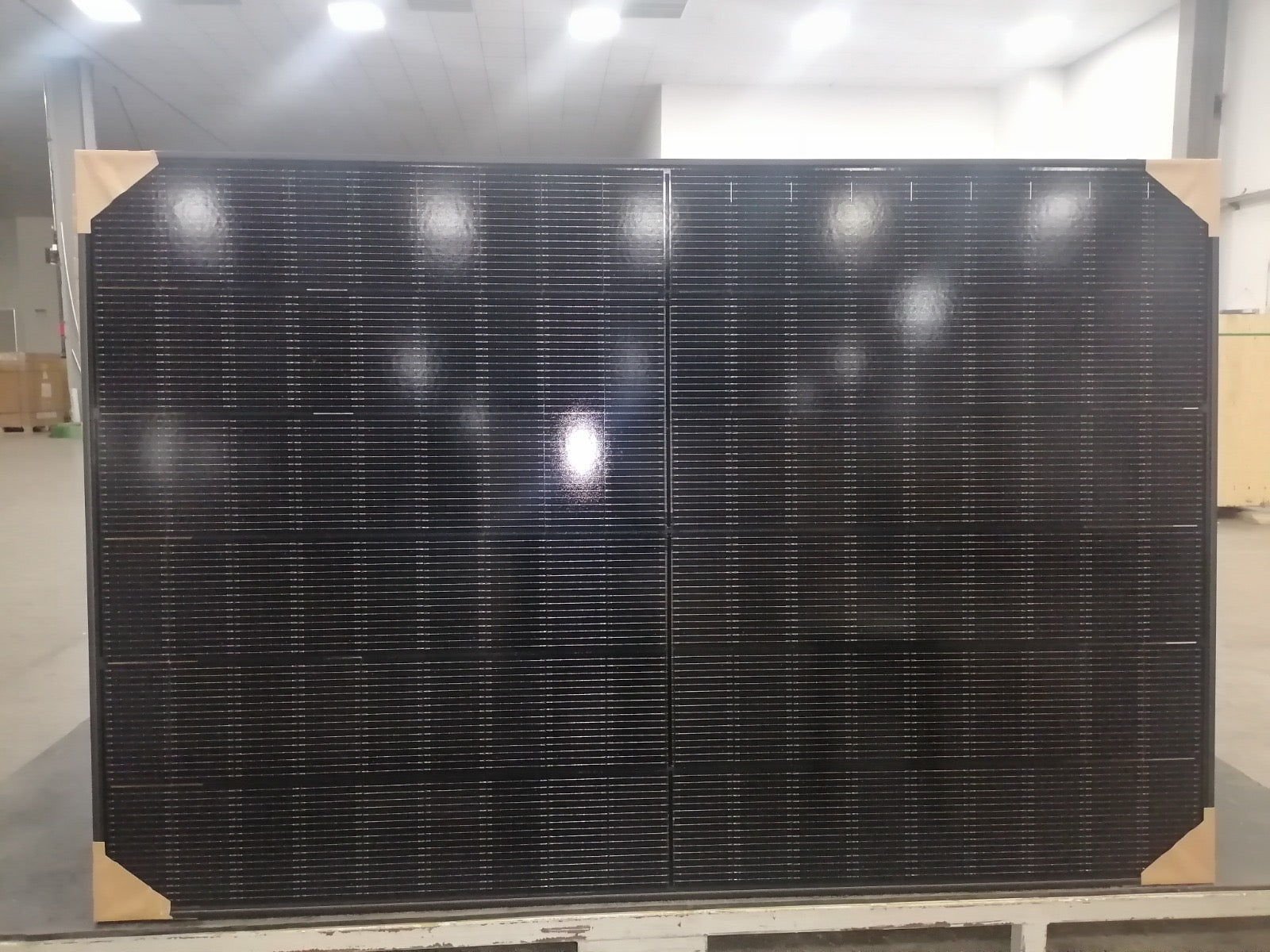

NKM440N-108BDM10 – 440W Bifacial N-Type Solar Panel

High-efficiency 440W N-Type mono-crystalline solar panel with bifacial power gain for increased energy output. Built for durability with an anodized aluminum frame and IP68 junction box. Ideal for residential, commercial, and off-grid systems where maximum performance and long lifespan are important.

Key Specs:

• Power Output: 440W

• Dimensions: 67.8” × 44.6” × 1.18”

• Weight: ~54 lbs

• Efficiency: ~22.5%

• Voc: 38.6V | Isc: 14.25A

• Degradation: ~0.4% per year (N-Type stability)

Great for rooftops, ground mounts, battery systems, and hybrid inverter setups.

Technical Specifications

Model: NKM440N-108BDM10

Bifacial N-Type mono-crystalline module using 182 mm cells in a 108-cell (6×18) layout.

Electrical Performance (STC)

Pmax: 440W

Vmp: 32.7V

Imp: 13.46A

Voc: 38.6V

Isc: 14.25A

Efficiency: ≈ 22.5%

Power Tolerance: 0 to +5W

Electrical Performance (NMOT)

Power: ≈ 334W

Vmp: ≈ 30.7V

Imp: ≈ 10.89A

Temperature Characteristics

Pmax Temp Coefficient: -0.29%/°C

Voc Temp Coefficient: -0.25%/°C

Isc Temp Coefficient: +0.045%/°C

Operating Temperature: -40°C to +85°C

Mechanical

Dimensions: 67.8 in × 44.6 in × 1.18 in (1722 × 1134 × 30 mm)

Weight: ≈ 54 lbs (24.5 kg)

Glass: 2.0 mm tempered, anti-reflective

Frame: Anodized aluminum alloy

Junction Box: IP68

System Ratings

Maximum System Voltage: 1500V DC

Maximum Series Fuse: 30A

Load Ratings: Snow 5400 Pa, Wind 2400 Pa

Longevity

Annual Degradation: ≈ 0.4% per year

Designed for strong long-term power retention from N-Type technology.

Warranty

Performance Guarantee : 25 years
Product Warranty : 15 years
