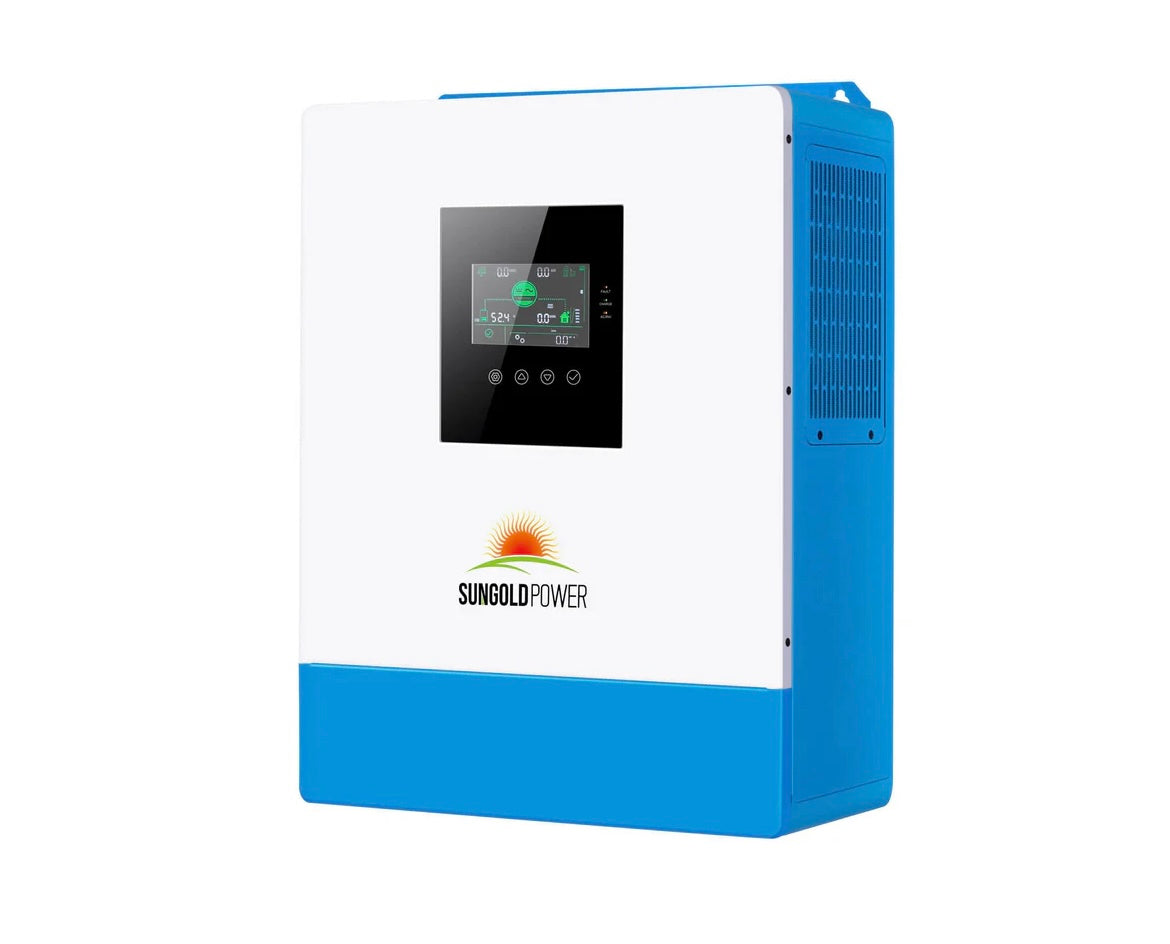

Sungold Power 5000W 48V Solar Charger Inverter (Parallel 100 MPPT Version) - FREE SHIPPING

General Information

Model: SPH5048P

Type: All-In-One Solar Hybrid Inverter

Rated Power: 5000W (5kW) Pure Sine Wave

System Type: Hybrid (Grid-Tied + Off-Grid)

Nominal Battery Voltage: 48V DC

Inverter Specifications

AC Output Voltage: 110V AC (Single Phase)

Output Power: 5000W continuous

Surge Power: Up to 2x rated power (varies by configuration)

Waveform: Pure Sine Wave

Frequency: 50Hz / 60Hz (Auto-sensing or selectable)

Power Factor: 1.0

Efficiency: ≥93%

Overload Protection: Yes

Motor Load Capacity: Up to 4HP

Solar (PV) Input

Maximum PV Array Power: 5500W

MPPT Solar Charger: 80A or 100A (model dependent)

MPPT Voltage Range: 120V – 450V DC

Maximum PV Input Voltage: 500V DC

Number of MPPT Trackers: 1

PV + AC Charging: Supported

Battery Charging

Battery Type Support: AGM / Sealed / Gel / Flooded / Lithium / User-defined

Battery Voltage Range: 40V – 60V DC

Maximum Charging Current (Solar + AC): Up to 100A

Charging Modes: AC Priority, Solar Priority, Only Solar, Mains & Solar Hybrid

Communication Port: RS485 (for BMS / Lithium battery communication)

System Modes

Output Modes: PV Priority, Utility Priority, Inverter Priority, Hybrid Output

System Functionality: Grid-tied operation with backup, Off-grid standalone operation, Hybrid (solar + grid + battery)

Parallel & Phase Operation

Parallel Capability: Up to 6 units (30kW total)

Supported Configurations: 120V Single Phase (1–2 units), 120V/240V Split Phase (2+ units), 208V 3-Phase (3+ units)

Parallel Kit Required: SPH5048P Parallel Kit

Protection Features

Overload / Short Circuit Protection

Battery Overcharge / Low Voltage Protection

PV Overvoltage Protection

Overtemperature Protection

Reverse Polarity Protection

Physical & Environmental

Cooling: Intelligent fan cooling

Operating Temperature: -10°C to +50°C

Storage Temperature: -15°C to +60°C

Humidity: 5% – 95% (non-condensing)

Noise Level: <60 dB

Enclosure Rating: Indoor use (IP20 / optional higher protection available)

Dimensions: [Insert dimensions if available]

Weight: [Insert weight if available]

Certifications & Compliance

Standards: CE, RoHS, ISO9001, and other applicable safety standards
