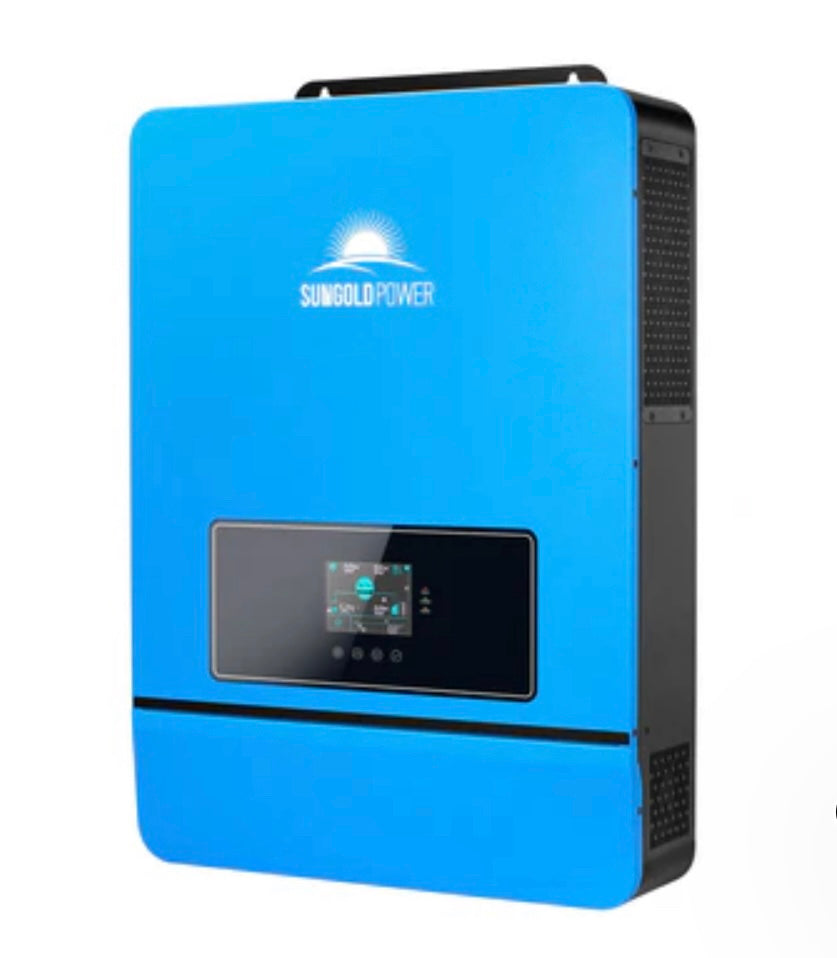

Sungold Power 8KW 48V Split Phase Solar Inverter/Charger - FREE SHIPPING

Key Specifications

Rated Output Power: 8,000 W (8 kW)

Maximum Peak Output Power: 16,000 W (16 kW surge)

Output Voltage: Split-Phase 120 V / 240 V or Single Phase 120 V

Output Frequency: 50/60 Hz selectable

Waveform: Pure Sine Wave

DC (Battery) Input Voltage: 48 V nominal

Solar (PV) Input: Dual MPPT controllers built in; Max open-circuit voltage 500 V DC per input

Battery Charging: Maximum battery charging current 200 A

Parallel Capability: Supports up to 6 units in parallel for a total of up to 48 kW

Load Motor Capacity: Up to 5 HP motor load

Operating Modes: – Charging: Hybrid / Utility Priority / Solar Priority / Solar-only – AC Output: Utility Priority / Solar + Utility Hybrid / Solar Priority / Inverter Priority

Time-Slot Charging/Discharging: Allows scheduling of charge/discharge periods based on peak and off-peak tariffs

Battery Compatibility: Works with all 48 V battery types including AGM/Sealed, Gel, Flooded, and LiFePO4; includes User Mode for custom batteries

Monitoring & Connectivity: WiFi module included for remote monitoring via mobile app; supports CAN & RS485 communication with compatible battery systems

Protection Features: PV input over-voltage/current protection, AC input over-voltage protection, battery over-voltage protection, overload protection, and more

Certifications: UL 1741 listed by ETL for off-grid solar systems

Dimensions: Approximately 17.9 in × 26 in × 5.1 in (45.5 cm × 66 cm × 13 cm)

Cooling: Internal fan cooling, noise level ≤ 60 dB

Warranty Information (USA)

The SunGold Power SPH8048P comes with a 2-year limited warranty for the original consumer purchaser. The warranty period begins on the date of purchase, as shown on the sales receipt or other proof of purchase. The warranty does not cover products that are misused, abused, modified, accidentally damaged, or installed outside the intended use described in the product documentation. Installation by a qualified electrician following local electrical codes is required; failure to comply may void the warranty.

CLICK HERE FOR ADDITIONAL INFORMATION

SunGold Power retains the final authority over all shipping issues and return decisions. CMG Solar Solutions makes no additional claims or warranties beyond those provided by SunGold Power. Customers are responsible for ensuring proper installation and handling to maintain warranty eligibility.
